Precision Metal Stamping Mold Projects

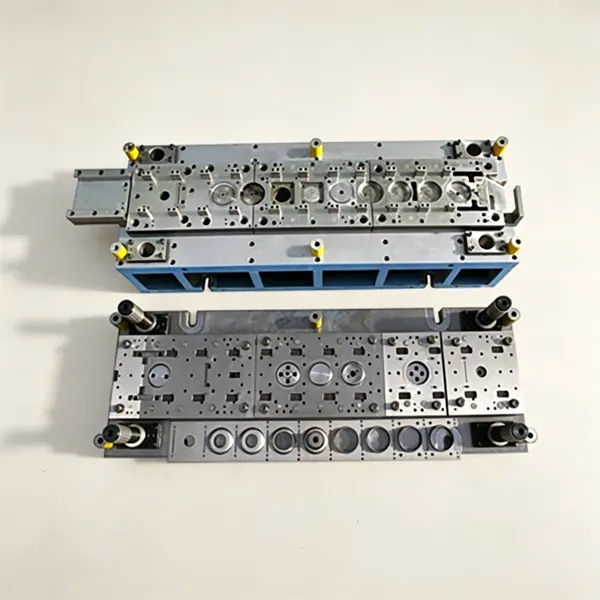

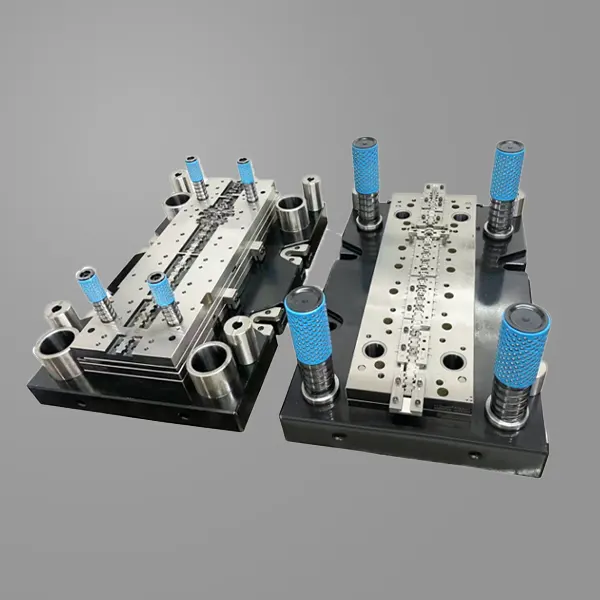

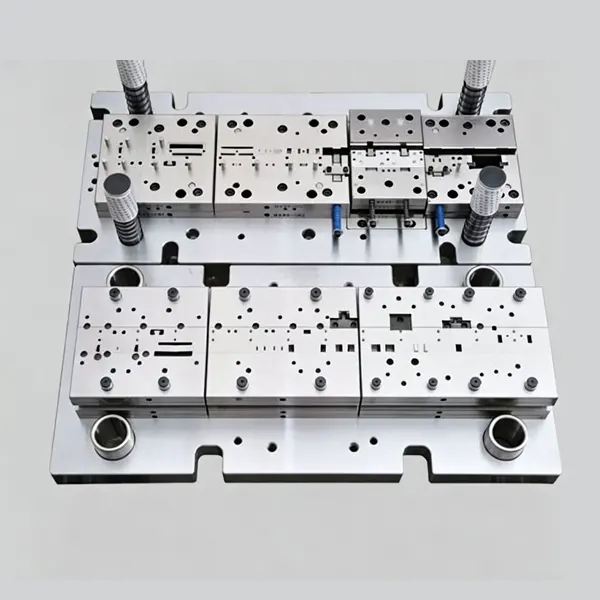

Karry Precision designs and manufactures precision metal stamping mold tooling for high-volume production of custom metal components. Our tooling capabilities include progressive dies, compound dies, single-operation dies, deep-drawing dies, and multi-station stamping tools developed according to part geometry, material, tolerance, press requirements, and production volume.

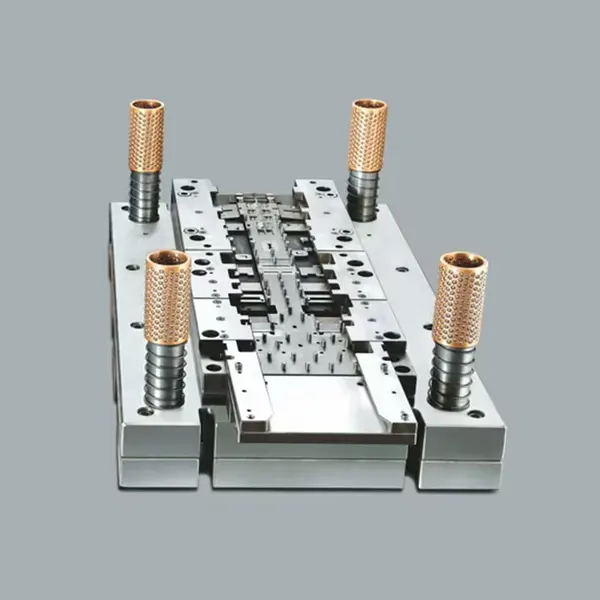

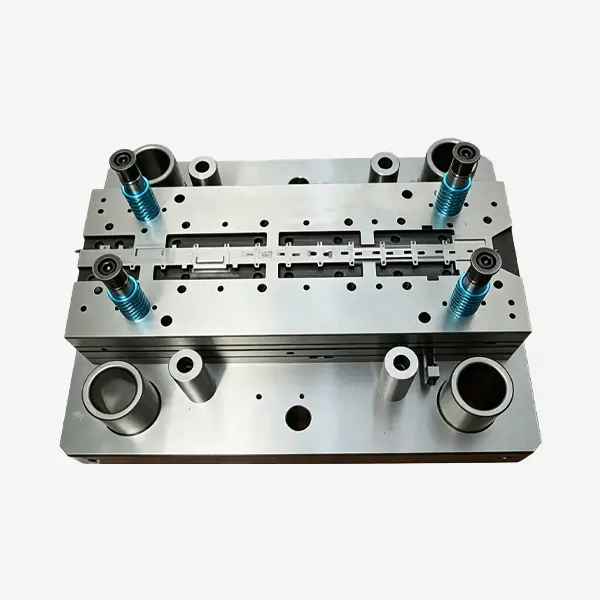

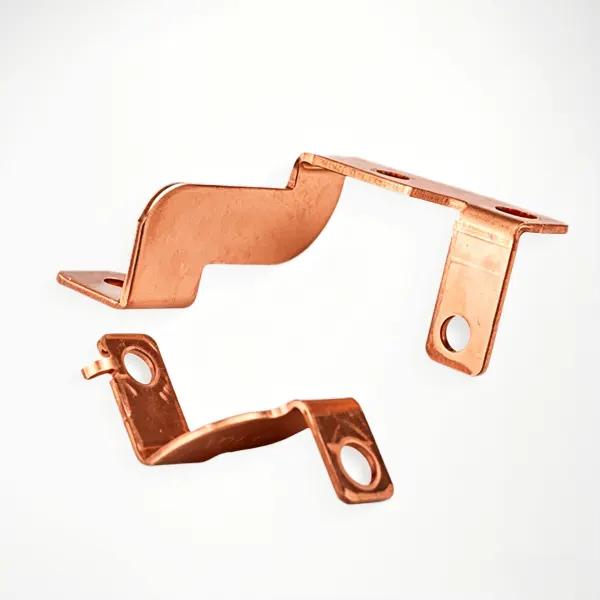

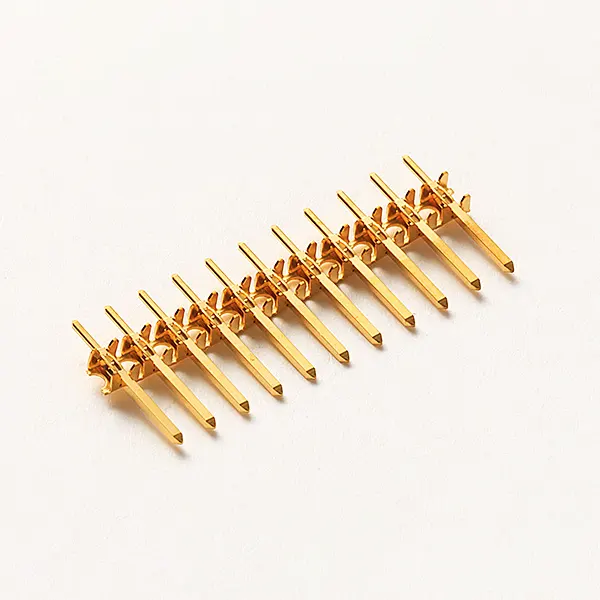

Stamping molds can be engineered for automotive brackets, motor housings, terminals, contacts, connectors, electrical components, and other precision stamped parts. Tooling development can include die design, strip-layout review, precision machining, assembly, trial stamping, dimensional inspection, and production validation according to project requirements.

Quality Control for Precision Metal Stamping Molds

• Tool Steel Verification
  Tool steel grade, hardness requirements, and material specifications are checked according to the approved tooling design.
• Precision Component Inspection
  Punches, inserts, die blocks, guide components, and other critical tooling features are inspected according to drawing requirements.
• Die Assembly & Alignment
  Tooling alignment, clearances, guide systems, and moving components are checked during die assembly.
• Trial Stamping & First-Article Validation
  Trial parts are produced and inspected to evaluate dimensional accuracy, forming quality, material flow, and part consistency.
• Tooling Performance Verification
  Feeding, punching, forming, drawing, trimming, and ejection performance are reviewed during tooling trials where applicable.
• Final Tooling Inspection
  Completed stamping molds are inspected against approved specifications before production release or delivery.
