CNC Machining for Aerospace Parts
Karry Precision provides CNC machining for custom aerospace parts, including structural brackets, precision housings, mounting components, and complex mechanical parts. With 3-axis, 4-axis, and 5-axis machining capabilities, we support prototypes and low-volume production in aluminum, titanium, stainless steel, and engineering plastics.
Get Free Quote
Aerospace
AEROSPACE PRECISION MACHINING
Manufacturing Considerations for Aerospace Components
CNC machined aerospace components often involve complex geometries, lightweight structures, thin walls, and critical dimensional relationships. Karry Precision reviews material requirements, machining access, datum references, tolerances, and inspection methods to develop a suitable manufacturing approach for each project.
Complex Geometry
Multi-face, contoured and difficult-access features.
Lightweight Materials
Aluminum, titanium and engineering plastics.
01 / GEOMETRY
Complex Geometry & Machining Access
02 / MATERIAL
Lightweight Material Selection
03 / INSPECTION
Critical features planned for verification
04 / BUILD STAGE
Prototypes & Low-Volume Production
AEROSPACE MACHINING CAPABILITIES
CNC Machining Capabilities for Aerospace Parts
5X / COMPLEX PARTS
5-Axis CNC Machining
For compound angles, deep cavities, contoured surfaces, angled holes and multi-face components where reducing re-fixturing can improve feature alignment and repeatability.
3- & 4-Axis CNC Milling
Efficient for brackets, plates, frames, housings, covers and prismatic structural parts.
CNC Turning & Turn-Mill
For shafts, sleeves, bushings, fittings, threaded parts and rotational hardware with milled secondary features.
Supporting Processes
Wire EDM, drilling, tapping, sheet metal support, surface finishing coordination and assembly assistance.
PARTS WE CAN MANUFACTURE
Custom CNC Machined Aerospace Parts
Karry Precision manufactures custom aerospace components according to customer drawings, material specifications, and functional requirements. From lightweight structural brackets and precision housings to complex impellers and inspection fixtures, each component is reviewed for geometry, machining feasibility, critical tolerances, and inspection requirements.
Structural & Mounting
- Lightweight structural brackets
- Mounting frames and supports
- Ribs, plates and interface parts
- Complex aluminum structures
Propulsion & Flow
- Impellers and turbine-related parts
- Curved-flow components
- Precision housings and covers
- Shafts, sleeves and fittings
Avionics & Electronics
- Sensor and electronics housings
- Mounting plates and thermal parts
- Connector hardware
- Precision equipment interfaces
Testing & Tooling
- Assembly and locating fixtures
- Inspection fixtures
- Prototype validation hardware
- Custom non-standard components
AEROSPACE MATERIALS
Materials for CNC Machined Aerospace Parts
Material selection plays an important role in the strength, weight, dimensional stability, and performance of aerospace components. Karry Precision works with aluminum alloys, titanium, stainless steel, and engineering plastics for drawing-based manufacturing. Final material selection depends on the part's operating environment, mechanical requirements, tolerances, and customer specifications.
| Material Family | Common Options | Why It Is Used | Typical Part Types |
|---|---|---|---|
| Aluminum | 2024, 6061, 6082, 7075 | Low weight, strong machinability, good strength-to-weight ratio | Brackets, frames, housings, structural parts |
| Titanium | Grade 2, Grade 5 | High strength-to-weight ratio and corrosion resistance | High-load hardware, precision structural parts |
| Stainless Steel | 303, 304, 316 | Strength, corrosion resistance and durability | Fittings, shafts, hardware, interfaces |
| Engineering Plastics | PEEK, POM, PTFE, PC | Low weight, insulation, low friction or chemical resistance | Insulators, guides, functional housings, fixtures |
TOLERANCE & QUALITY CONTROL
Quality Inspection for Aerospace CNC Machined Parts
Quality control for aerospace-related components begins with drawing review and inspection planning. Critical dimensions, datum relationships, geometric tolerances, and surface requirements are evaluated before machining. Depending on project requirements, inspection may include conventional measuring instruments, optical measurement, CMM verification, and project-specific dimensional reports.
- Drawing and datum review before process planning
- Incoming material and in-process dimensional checks
- CMM and conventional metrology according to feature requirements
- Project-specific dimensional reports when requested
- Final inspection before shipment
TYPICAL 5-AXIS REFERENCE
±0.02–0.05 mm
Typical precision tolerances for 5-axis machined features are approximately ±0.02–0.05 mm. Actual achievable tolerances depend on material, geometry, part size, machining strategy, and inspection requirements. Tighter dimensions require engineering review.
Do not over-tolerance the whole part
Keep the tightest tolerances on function-critical features and use practical tolerances elsewhere to improve manufacturability and control cost.
Surface Finishing for Aerospace Components
Finish requirements should define material compatibility, masking, corrosion or wear needs, cosmetic surfaces and post-finish dimensional control.
ALUMINUM
Anodizing
Corrosion and wear resistance with controlled technical appearance for aluminum components.
STAINLESS STEEL
Passivation
Supports corrosion resistance by removing free-iron contamination from compatible stainless surfaces.
MULTIPLE METALS
Bead Blasting & Polishing
Used to create a uniform texture, reduce visible tool marks or improve the final surface appearance.
From Drawing Review to Final Inspection
A clear workflow keeps machining, finishing and inspection aligned as the project moves from prototype to repeat builds.
01
Drawing Review
CAD, tolerances, datums, material, quantity and finish.
02
DFM & Planning
Tool access, workholding, distortion and inspection strategy.
03
Programming & Setup
Toolpaths, fixture strategy and machine preparation.
04
Machining & Finish
CNC operations, deburring and project-specified surface treatment.
05
Final Inspection
Dimensional verification, documentation and shipment release.

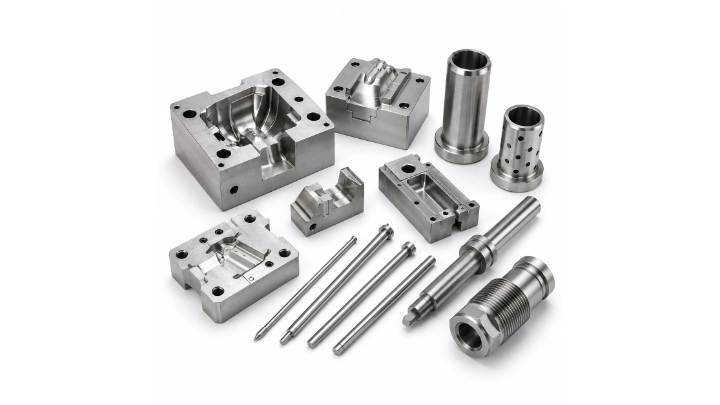

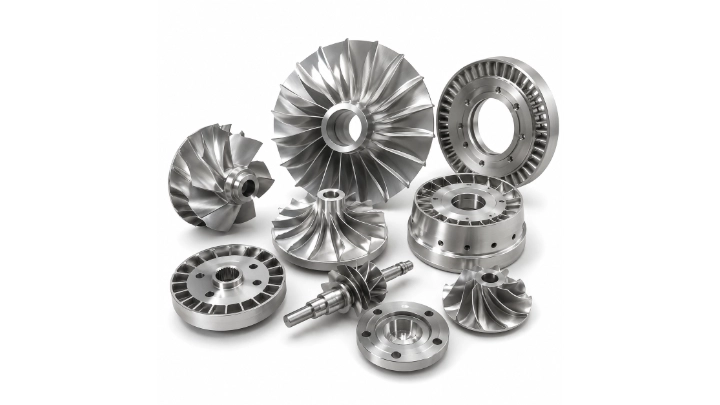

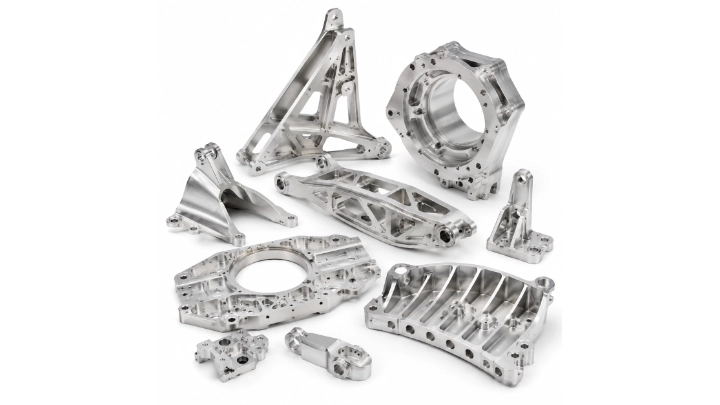

MANUFACTURING CASES
Representative CNC Machined Components
WHY KARRY PRECISION
A Practical Manufacturing Partner for Precision Programs
The value is not only machine capacity. Drawing review, process continuity, inspection planning and clear communication help reduce avoidable iteration as a design moves forward.
01 Drawing-First Engineering Review
Review critical dimensions, datums, difficult features, finishes and inspection expectations before the route is finalized.
02 Multi-Process Coordination
Milling, turning, 5-axis machining, supporting fabrication and finishing can be coordinated through one project path.
03 Prototype-to-Production Continuity
Carry process knowledge, inspection points and manufacturing feedback from early samples into repeat builds.
04 Clear Global Communication
Keep drawing revisions, engineering questions, inspection needs and delivery expectations visible throughout the project.
Have an Aerospace Part Ready for Review?
Send your 3D model, 2D drawing, material, quantity, finish and inspection requirements.
AEROSPACE CNC MACHINING FAQ
CNC Machining Aerospace Parts FAQs
What types of aerospace parts can Karry Precision machine?
Karry Precision manufactures custom components such as structural brackets, mounting frames, precision housings, impellers, shafts, fittings, sensor hardware, and inspection fixtures. Manufacturing feasibility is reviewed according to each project's drawings, materials, tolerances, and inspection requirements.
What materials are available for aerospace CNC machining?
Common material options include aluminum alloys such as 2024, 6061, and 7075, titanium, stainless steel, and engineering plastics such as PEEK. Final material selection depends on the component's mechanical requirements, operating environment, and customer specifications.
When should 5-axis CNC machining be used for aerospace components?
5-axis CNC machining is suitable for components with complex contours, angled holes, deep cavities, undercuts, and multiple machining faces. Reducing the number of setups can help improve feature alignment and dimensional consistency.
What tolerances can aerospace CNC machined parts achieve?
Typical precision tolerances for relevant 5-axis features are approximately ±0.02–0.05 mm. Achievable tolerances depend on material, geometry, part size, machining strategy, and inspection requirements. Critical dimensions should be reviewed before production.
Can you support prototype and low-volume aerospace parts?
Yes. Karry Precision supports engineering prototypes, functional validation, trial production, and repeat low-volume manufacturing. Process planning and inspection requirements are reviewed according to the project stage and customer specifications.
What information is required for an aerospace machining quotation?
Please provide your 3D CAD files and 2D drawings with material specifications, quantity, critical dimensions, geometric tolerances, surface finish, and inspection requirements. Any required certifications, material traceability, first-article documentation, or special-process approvals should also be identified for review before quotation.
